EKS Fargate: Hybrid Kubernetes AWS cluster

Published on 2020-10-18. Last Updated on 2022-10-07 by Alexandre Vazquez

EKS Fargate AWS Kubernetes Cluster: Learn how to create a Kubernetes cluster that can use also all the power of serverless computing using AWS Fargate

Eks Fargate: Hybrid Kubernetes Aws Cluster
Photo by Drew Graham on Unsplash

We know that there are several movements and paradigms that are pushing us hard to change our architectures trying to leverage much more managed services and taking care of the operational level so we can focus on what’s really important for our own business: creating applications and deliver value through them.

AWS from Amazon has been a critical partner during that journey, especially in the container world. With the release of EKS some time ago were able to provide a managed Kubernetes service that everyone can use, but also introducing the CaaS solution Fargate also gives us the power to run a container workload in a serverless fashion, without needing to worry about anything else.

But you could be thinking about if those services can work together. And the short answer is yes. But even more important than that we’re seeing that also they can work in a mixed mode:

So you can have an EKS cluster that has some nodes that are Fargate services and some nodes that are normal EC2 machines for workloads that are working in a state-full fashion or fits better in a traditional EC2 approach. And everything works by the same rules and is managed by the same EKS Cluster.

So, that sounds amazing but, How we can do that? Let’s see.

eksctl

To get to that point there is a tool that we need to introduce first, and that tool is named eksctl and it is a command-line utility that helps us to do any action to interact with the EKS service and simplifies a lot the work to do and also be able to automate most of the tasks in a non-human required mode. So, the first thing we need to is to get eksctl in our platforms ready. Let’s see how we can get that.

We have here all the detailed from Amazon itself about how to install eksctl in different platforms, no matter if you’re using Windows, Linux, or MacOS X:

Eks Fargate: Hybrid Kubernetes Aws Cluster
Installing or updating eksctl – Amazon EKS
Learn how to install or update the eksctl command line tool. This tool is used to create and work with an Amazon EKS cluster.

After doing that we can check that we have installed the eksctl software running the command:

eksctl version

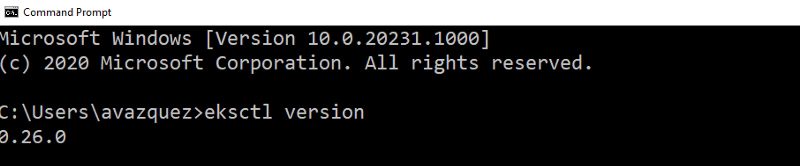

And we should get an output similar to this one:

Eks Fargate: Hybrid Kubernetes Aws Cluster
Eksctl Version Output&Nbsp;Command

So after doing that we can see that we have access to all the power behind the EKS service just typing these simple commands into our console window.

Creating the EKS Hybrid Cluster

Now, we’re going to create a mixed environment with some EC2 machines and enable the Fargate support for EKS. To do that, we will start with the following command:

eksctl create cluster --version=1.15 --name=cluster-test-hybrid --region=eu-west-1 --max-pods-per-node=1000 --fargate
[ℹ]  eksctl version 0.26.0
[ℹ]  using region eu-west-1
[ℹ]  setting availability zones to [eu-west-1c eu-west-1a eu-west-1b]
[ℹ]  subnets for eu-west-1c - public:192.168.0.0/19 private:192.168.96.0/19
[ℹ]  subnets for eu-west-1a - public:192.168.32.0/19 private:192.168.128.0/19
[ℹ]  subnets for eu-west-1b - public:192.168.64.0/19 private:192.168.160.0/19
[ℹ]  using Kubernetes version 1.15
[ℹ]  creating EKS cluster "cluster-test-hybrid" in "eu-west-1" region with Fargate profile
[ℹ]  if you encounter any issues, check CloudFormation console or try 'eksctl utils describe-stacks --region=eu-west-1 --cluster=cluster-test-hybrid'
[ℹ]  CloudWatch logging will not be enabled for cluster "cluster-test-hybrid" in "eu-west-1"
[ℹ]  you can enable it with 'eksctl utils update-cluster-logging --region=eu-west-1 --cluster=cluster-test-hybrid'
[ℹ]  Kubernetes API endpoint access will use default of {publicAccess=true, privateAccess=false} for cluster "cluster-test-hybrid" in "eu-west-1"
[ℹ]  2 sequential tasks: { create cluster control plane "cluster-test-hybrid", create fargate profiles }
[ℹ]  building cluster stack "eksctl-cluster-test-hybrid-cluster"
[ℹ]  deploying stack "eksctl-cluster-test-hybrid-cluster"
[ℹ]  creating Fargate profile "fp-default" on EKS cluster "cluster-test-hybrid"
[ℹ]  created Fargate profile "fp-default" on EKS cluster "cluster-test-hybrid"
[ℹ]  "coredns" is now schedulable onto Fargate
[ℹ]  "coredns" is now scheduled onto Fargate
[ℹ]  "coredns" pods are now scheduled onto Fargate
[ℹ]  waiting for the control plane availability...
[✔]  saved kubeconfig as "C:\\Users\\avazquez/.kube/config"
[ℹ]  no tasks
[✔]  all EKS cluster resources for "cluster-test-hybrid" have been created
[ℹ]  kubectl command should work with "C:\\Users\\avazquez/.kube/config", try 'kubectl get nodes'
[✔]  EKS cluster "cluster-test-hybrid" in "eu-west-1" region is ready

This command will setup the EKS cluster enabling the Fargate support.

NOTE: The first thing that we should notice is that the Fargate support for EKS is not yet available in all the AWS regions. So, depending on the region that you’re using you could get an error. At this moment this is just enabled in US East (N. Virginia), US East (Ohio), US West (Oregon), Europe (Ireland), Europe (Frankfurt), Asia Pacific (Singapore), Asia Pacific (Sydney), Asia Pacific (Tokyo) based on the information from AWS Announcements: https://aws.amazon.com/about-aws/whats-new/2020/04/eks-adds-fargate-support-in-frankfurt-oregon-singapore-and-sydney-aws-regions/

So, now, we should add to that cluster a Node Group. a Node Group is a set of EC2 instances that are going to be managed as part of it. And to do that we will use the following command:

eksctl create nodegroup --cluster cluster-test-hybrid --managed
[ℹ]  eksctl version 0.26.0
[ℹ]  using region eu-west-1
[ℹ]  will use version 1.15 for new nodegroup(s) based on control plane version
[ℹ]  nodegroup "ng-1262d9c0" present in the given config, but missing in the cluster
[ℹ]  1 nodegroup (ng-1262d9c0) was included (based on the include/exclude rules)
[ℹ]  will create a CloudFormation stack for each of 1 managed nodegroups in cluster "cluster-test-hybrid"
[ℹ]  2 sequential tasks: { fix cluster compatibility, 1 task: { 1 task: { create managed nodegroup "ng-1262d9c0" } } }
[ℹ]  checking cluster stack for missing resources
[ℹ]  cluster stack has all required resources
[ℹ]  building managed nodegroup stack "eksctl-cluster-test-hybrid-nodegroup-ng-1262d9c0"
[ℹ]  deploying stack "eksctl-cluster-test-hybrid-nodegroup-ng-1262d9c0"
[ℹ]  no tasks
[✔]  created 0 nodegroup(s) in cluster "cluster-test-hybrid"
[ℹ]  nodegroup "ng-1262d9c0" has 2 node(s)
[ℹ]  node "ip-192-168-69-215.eu-west-1.compute.internal" is ready
[ℹ]  node "ip-192-168-9-111.eu-west-1.compute.internal" is ready
[ℹ]  waiting for at least 2 node(s) to become ready in "ng-1262d9c0"
[ℹ]  nodegroup "ng-1262d9c0" has 2 node(s)
[ℹ]  node "ip-192-168-69-215.eu-west-1.compute.internal" is ready
[ℹ]  node "ip-192-168-9-111.eu-west-1.compute.internal" is ready
[✔]  created 1 managed nodegroup(s) in cluster "cluster-test-hybrid"
[ℹ]  checking security group configuration for all nodegroups
[ℹ]  all nodegroups have up-to-date configuration

So now we should be able to use kubectl to manage this new cluster. If you don’t have installed kubectl or you haven’t heard about it. This is the command line tool that allow us to manage your Kubernetes Cluster and you can install it based on the documentation shown here:

Eks Fargate: Hybrid Kubernetes Aws Cluster
Installing or updating eksctl – Amazon EKS
Learn how to install or update the eksctl command line tool. This tool is used to create and work with an Amazon EKS cluster.

So, now, we should start taking a look at the infrastructure that we have. So if we type the following command to see the nodes at our disposal:

kubectl get nodes

We see an output similar to this:

NAME                                                    STATUS   ROLES    AGE   VERSION
fargate-ip-192-168-102-22.eu-west-1.compute.internal    Ready    <none>   10m   v1.15.10-eks-094994
fargate-ip-192-168-112-125.eu-west-1.compute.internal   Ready    <none>   10m   v1.15.10-eks-094994
ip-192-168-69-215.eu-west-1.compute.internal            Ready    <none>   85s   v1.15.11-eks-bf8eea
ip-192-168-9-111.eu-west-1.compute.internal             Ready    <none>   87s   v1.15.11-eks-bf8eea

As you can see we have 4 “nodes” two that start with the fargate name that are fargate nodes and two that just start with ip-… and those are the traditional EC2 instances. And after that moment that’s it, we have our mixed environment ready to use.

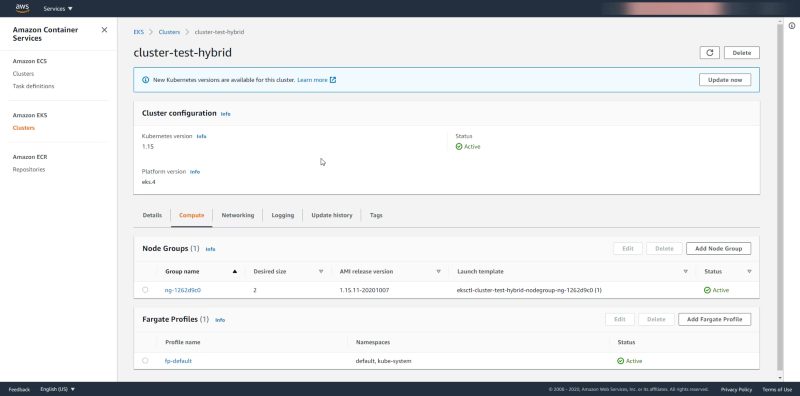

We can check the same cluster using the AWS EKS page to see that configuration more in detail. If we enter in the EKS page for this cluster we see in the Compute tab the following information:

Eks Fargate: Hybrid Kubernetes Aws Cluster

We see under Node Groups the data around the EC2 machines that are managed as part of this cluster and as you can see we saw 2 as the Desired Capacity and that’s why we have 2 EC2 instances in our cluster. And regarding the Fargate profile, we see the namespaces set to default and kube-system and that means that all the deployments to those namespaces are going to be deployed using Fargate Tasks.

Summary

In the following articles in these series, we will see how to progress on our Hybrid cluster, deploy workloads scale it based on the demand that we’re getting, enabling integration with other services like AWS CloudWatch, and so on. So, stay tuned, and don’t forget to follow my articles to not miss any new updates as soon as it’s available to you!
