Improving Development Security With These Open Source Tools

Improving Development Security With These Open Source Tools

Discover how Anchore can help you to keep your software safe and secure without losing agility.

Improving Development Security  With These Open Source Tools
Photo by Franck on Unsplash

Development Security is one of the big topics of today’s development practice. All the improvements that we got following the DevOps practices have generated many issues and concerns from the security perspective.

The explosion of components that the security teams need to deal with, container approaches, and polyglot environments gave us many benefits from the development and the operational perspective. Still, it made the security side of it more complex.

This is why there have been many movements regarding the “Shift left” approach and including security as part of the DevOps process creating the new term for DevSecOps that is becoming the new normal.

So, today what I would like to bring to you is a set of tools that I have just discovered that are created with the approach of making your life easier from the development security perspective because also developers need to be part of this and not leave all the responsibility to a different team.

This set of tools is name Anchore Toolbox, and they are open source and free to use, as you can see on the official webpage (https://anchore.com/opensource/)

So, what Anchore can provide to us? At the moment, we are talking about two different applications: Syft and Grype.

Syft

Syft is a CLI tool and go library for generating a Software Bill of Materials (SBOM) from container images and filesystems. Installation is as easy as just executing the following command:

curl -sSfL https://raw.githubusercontent.com/anchore/syft/main/install.sh | sh -s -- -b /usr/local/bin

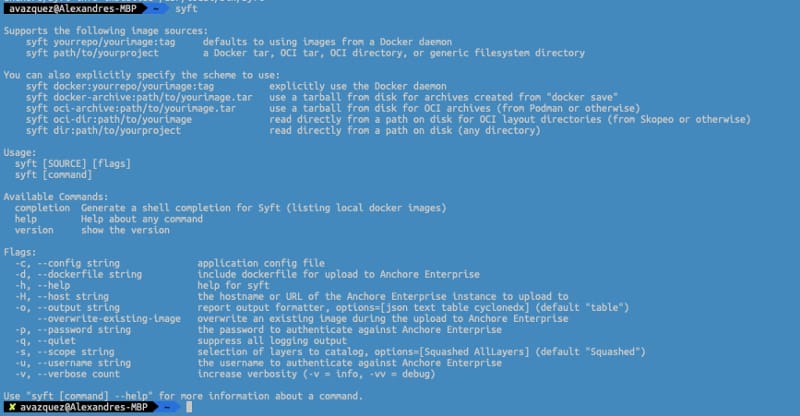

And after doing that, we need to type syft to see all the options at our disposal:

Improving Development Security With These Open Source Tools
Syft Help Menu With All The Options Available

So, in our case, I will use to generate a bill of materials from an existing Docker image from bitnami/kafka to show how this works. I need to type the following command:

syft bitnami/kafka

And after a few seconds to have the image loaded and analyzed, I get as the output the list of all and each of the packages that this image has installed and the version of each of them as shown in the picture below. One great thing is that it shows not only the operating system packages like what we have installed using apk or apt but also other components like java libraries as well so we can have a complete bill of materials for this container image.

 ✔ Loaded image
 ✔ Parsed image
 ✔ Cataloged image [204 packages]
[0019] WARN unexpectedly empty matches for archive ‘/opt/bitnami/kafka/libs/kafka_2.12–2.7.0-javadoc.jar’
[0019] WARN unexpectedly empty matches for archive ‘/opt/bitnami/kafka/libs/kafka_2.12–2.7.0-javadoc.jar’
[0019] WARN unexpectedly empty matches for archive ‘/opt/bitnami/kafka/libs/scala-java8-compat_2.12–0.9.1.jar’
[0019] WARN unexpectedly empty matches for archive ‘/opt/bitnami/kafka/libs/scala-java8-compat_2.12–0.9.1.jar’
[0019] WARN unexpectedly empty matches for archive ‘/opt/bitnami/kafka/libs/kafka_2.12–2.7.0-test-sources.jar’
[0019] WARN unexpectedly empty matches for archive ‘/opt/bitnami/kafka/libs/kafka_2.12–2.7.0-test-sources.jar’
[0019] WARN unexpectedly empty matches for archive ‘/opt/bitnami/kafka/libs/jackson-module-scala_2.12–2.10.5.jar’
[0019] WARN unexpectedly empty matches for archive ‘/opt/bitnami/kafka/libs/jackson-module-scala_2.12–2.10.5.jar’
[0019] WARN unexpectedly empty matches for archive ‘/opt/bitnami/kafka/libs/kafka-streams-scala_2.12–2.7.0.jar’
[0019] WARN unexpectedly empty matches for archive ‘/opt/bitnami/kafka/libs/kafka-streams-scala_2.12–2.7.0.jar’
[0019] WARN unexpectedly empty matches for archive ‘/opt/bitnami/kafka/libs/kafka_2.12–2.7.0-test.jar’
[0019] WARN unexpectedly empty matches for archive ‘/opt/bitnami/kafka/libs/kafka_2.12–2.7.0-test.jar’
[0019] WARN unexpectedly empty matches for archive ‘/opt/bitnami/kafka/libs/scala-collection-compat_2.12–2.2.0.jar’
[0019] WARN unexpectedly empty matches for archive ‘/opt/bitnami/kafka/libs/scala-collection-compat_2.12–2.2.0.jar’
[0020] WARN unexpectedly empty matches for archive ‘/opt/bitnami/kafka/libs/kafka_2.12–2.7.0.jar’
[0020] WARN unexpectedly empty matches for archive ‘/opt/bitnami/kafka/libs/kafka_2.12–2.7.0.jar’
[0020] WARN unexpectedly empty matches for archive ‘/opt/bitnami/kafka/libs/kafka_2.12–2.7.0-sources.jar’
[0020] WARN unexpectedly empty matches for archive ‘/opt/bitnami/kafka/libs/kafka_2.12–2.7.0-sources.jar’
[0020] WARN unexpectedly empty matches for archive ‘/opt/bitnami/kafka/libs/scala-logging_2.12–3.9.2.jar’
[0020] WARN unexpectedly empty matches for archive ‘/opt/bitnami/kafka/libs/scala-logging_2.12–3.9.2.jar’
NAME VERSION TYPE
 java-archive
acl 2.2.53–4 deb
activation 1.1.1 java-archive
adduser 3.118 deb
aopalliance-repackaged 2.6.1 java-archive
apt 1.8.2.2 deb
argparse4j 0.7.0 java-archive
audience-annotations 0.5.0 java-archive
base-files 10.3+deb10u8 deb
base-passwd 3.5.46 deb
bash 5.0–4 deb
bsdutils 1:2.33.1–0.1 deb
ca-certificates 20200601~deb10u2 deb
com.fasterxml.jackson.module.jackson.module.scala java-archive
commons-cli 1.4 java-archive
commons-lang3 3.8.1 java-archive
...

Grype

Grype is a vulnerability scanner for container images and filesystems. It is the next step because it checks the image’s components and checks if there is any known vulnerability.

To install this component again is as easy as type the following command:

curl -sSfL https://raw.githubusercontent.com/anchore/grype/main/install.sh | sh -s -- -b /usr/local/bin

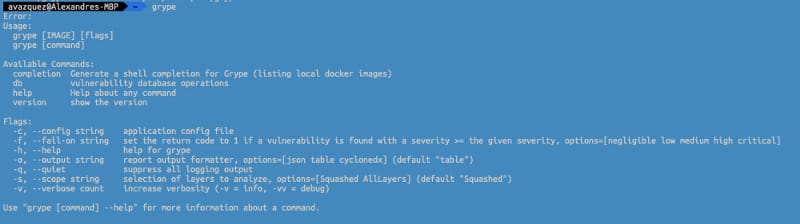

After doing that, we need to type grype to have the help menu with all the options at our disposal:

Improving Development Security With These Open Source Tools
Grype Help Menu With All The Options Available

Grype works in the following one. The first thing it does is load the vulnerability DB to check the different packages against this database to search for any known vulnerability. After doing that, follow the same pattern as syft and generate the bill of materials and check each of the components into the vulnerability database, and if there is a match. It just provides the ID of the vulnerability, the severity, and, if this is fixed into a higher version, provides the version where this vulnerability has been fixed.

Here you can see the output regarding the same image from bitnami/kafka with all the vulnerabilities detected

grype bitnami/kafka
 ✔ Vulnerability DB [updated]
 ✔ Loaded image
 ✔ Parsed image
 ✔ Cataloged image [204 packages]
 ✔ Scanned image [149 vulnerabilities]
[0018] ERROR matcher failed for pkg=Pkg(type=java-archive, name=, version=): matcher failed to fetch by CPE pkg=’’: product name is required
[0018] ERROR matcher failed for pkg=Pkg(type=java-archive, name=, version=): matcher failed to fetch by CPE pkg=’’: product name is required
[0018] ERROR matcher failed for pkg=Pkg(type=java-archive, name=, version=): matcher failed to fetch by CPE pkg=’’: product name is required
[0018] ERROR matcher failed for pkg=Pkg(type=java-archive, name=, version=): matcher failed to fetch by CPE pkg=’’: product name is required
[0018] ERROR matcher failed for pkg=Pkg(type=java-archive, name=, version=): matcher failed to fetch by CPE pkg=’’: product name is required
[0018] ERROR matcher failed for pkg=Pkg(type=java-archive, name=, version=): matcher failed to fetch by CPE pkg=’’: product name is required
NAME INSTALLED FIXED-IN VULNERABILITY SEVERITY
apt 1.8.2.2 CVE-2011–3374 Negligible
bash 5.0–4 CVE-2019–18276 Negligible
commons-lang3 3.8.1 CVE-2013–1907 Medium
commons-lang3 3.8.1 CVE-2013–1908 Medium
coreutils 8.30–3 CVE-2016–2781 Low
coreutils 8.30–3 CVE-2017–18018 Negligible
curl 7.64.0–4+deb10u1 CVE-2020–8169 Medium
..

Summary

These simple CLI tools help us a lot in the needed journey to keep our software current and free of known vulnerabilities and improve our development security. Also, as these are CLI apps and also can run on containers, it is effortless to include those as part of your CICD pipeline so vulnerabilities can check in an automated way.

They also provided a plugin to be included in the most used CI/CD systems such as Jenkins, Cloudbees, CircleCI, GitHub Actions, Bitbucket, Azure DevOps, and so on.
