Let’s Talk About the Most Dangerous Option From Pod Design Perspective, so you can be ready to use it!
Photo by Timelab Pro on Unsplash
One of the usual conversations is about the composition and definition of components inside a Pod. This is normal for people moving from traditional deployment to a cloud-native environment, and the main question is: How many containers can I have inside a pod?
I’m sure that most of you have heard or have asked that question at some point on your cloud-native journey, or even you have this doubt internally at this moment, and there is no doubt on the answer: One single container.
Wait, wait!! Don’t leave the post yet! We know that is not technically true, but it is easier to understand initially; you can only have a pod doing one thing.
So, if that’s the case, why do the multi container pods exist? And most importantly, if this is the first time you have heard that concept, what is a multi container pod?

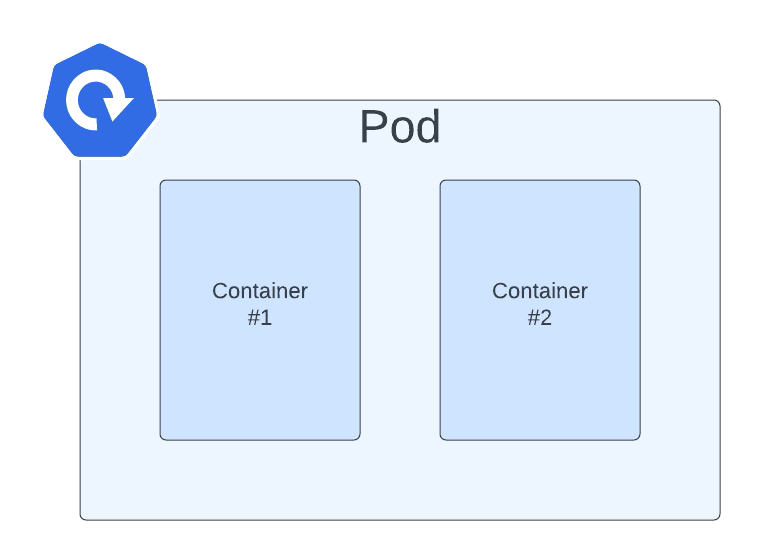

Let’s start with the definition: A multi container pod has more than one container in its composition. And when we are talking about multi container, we are not talking about having some initContainers to manage the dependencies. Still, we are talking about having more than one container run simultaneously and at the same level, as you can see in the picture below:
Does Kubernetes support this model? Yes, for sure. You can define inside your containers section as many containers as you need. So, from a technical view, there is no limit to having as many containers as you need in the same pod. But the main question you should ask yourself is:
Is this what you want to do?
A pod is the smallest unit in Kubernetes as a reminder. You deploy and undeploy pods, stop and start pods, restart pods, scale pods. So anything that is inside the same pod is highly coupled. It’s like a bundle, and they also share resources. So it is even more critical.
Imagine this situation, I’d like to buy a notebook, so I go to the shop and ask for the notebook, but they don’t have a single notebook. Still, they have an incredible bundle: a notebook, a pen, and a stapler just for $2 more than a single notebook price.
So you think that this is an excellent price because you are getting a pen and a stapler for a small part of their price if you would like to buy it in isolation. So you think that’s a good idea. But then, you remind that you also need other notebooks for other purposes. In the end, you need ten more notebooks, but when you need to buy them, you also need to acknowledge the ten pens and ten staplers that you don’t need anymore. OK, there are cheaper, but in the end, you are paying a reasonable price for something that you don’t need. So, it is not efficient. And the same applies to the Pod structure definition.
In the end, you move from traditional monolith deployments to different containers inside a pod to have the same challenges and issues? What is the point of doing that?
None.
If there is no reason to have two containers tightly together, why is this allowed in the K8S specification? Because this is useful for some specific use-cases and scenarios. Let’s talk about some of them.
- Helper Containers: This is the most common one and is that you have different containers inside the pod. Still, one is the main one, the one that provides a business capability or a feature, and the other is just helping in some way.
- Sidecar Pattern Implementation: Another common approach to have this composition is implementing the sidecar pattern. This is how it works by deploying another container to perform a specific capability. You have seen it, for example, for Service Meshes, Log Aggregation Architecture, or other components that follow that pattern.
- Monitoring Exporters: Another usual see to thing do is to use one of these containers to act as an exporter for the monitoring metrics of the main component. This is usually seen on architectures such as Prometheus, where each piece has its exporter to be scraped from the Prometheus Server
There are also exciting facts of sharing containers inside a pod because, as commented, they also share resources such as:
- Volumes: You can, for example, define a shared folder for all the different containers inside a pod, so one container can read information for the other to perform its task quickly and efficiently.
- Inter-process Communication: You can communicate between containers using IPC to communicate more efficiently.
- Network: The different containers inside a pod can also access ports from other containers just reaching localhost.
I hope this article has helped you understand why this capability of having many containers inside the same pod exists, but at the same time to know which kind of scenarios are using this approach and having some reasoning about if a new use-case should be used this approach or not.
