GraphQL Support in Flogo Enterprise

2022-10-102019-06-03 by Alexandre Vazquez

With the recent release of Flogo Enterprise 2.6 (please take your time to take a look at the release notes to know all the news that have been released), it has been included support to GraphQL.

I don’t want to make a full article about what GraphQL is and the advantages that include comparing with REST and so. Especially when you have so many articles in medium about that topic, so please take a look at the following ones:

[visual-link-preview encoded=”eyJ0eXBlIjoiZXh0ZXJuYWwiLCJwb3N0IjowLCJwb3N0X2xhYmVsIjoiIiwidXJsIjoiaHR0cHM6Ly9tZWRpdW0uY29tL2ZyZWUtY29kZS1jYW1wL2EtYmVnaW5uZXJzLWd1aWRlLXRvLWdyYXBocWwtODZmODQ5Y2UxYmVjIiwiaW1hZ2VfaWQiOi0xLCJpbWFnZV91cmwiOiJodHRwczovL21pcm8ubWVkaXVtLmNvbS9tYXgvMTIwMC8xKnNiUGptX2NVSGVkTXBzNktkeTJGLUEuanBlZyIsInRpdGxlIjoiQSBCZWdpbm5lcuKAmXMgR3VpZGUgdG8gR3JhcGhRTCIsInN1bW1hcnkiOiJPbmUgb2YgdGhlIG1vc3QgY29tbW9ubHkgZGlzY3Vzc2VkIHRlcm1zIHRvZGF5IGlzIHRoZSBBUEkuIEEgbG90IG9mIHBlb3BsZSBkb27igJl0IGtub3cgZXhhY3RseSB3aGF0IGFuIEFQSSBpcy4gQmFzaWNhbGx5LCBBUEkgc3RhbmRzIGZvcuKApiIsInRlbXBsYXRlIjoidXNlX2RlZmF1bHRfZnJvbV9zZXR0aW5ncyJ9″]

So, in summary, GraphQL it’s a different protocol to define your API interfaces with another approach in mind. So, let’s see how can include this kind of interfaces in our Flogo flows. We’re going to play with the following GraphQL Schema that is going to define our API

If this is the first time you see a GraphQL schema, let me give you some clarifications:

Schema is split into three parts: Queries, Mutations, and Model
Queries are GET-style request to get information. In our case, we have two queries currentUser and company.
Mutations are POST/PUT-style request to modify information. In our case, we have three mutations: registerUser, registerCompany, asignUser.
Model is the different objects and types our queries and mutations interact with.

So, now we are going to do the hard work in Flogo Environment, and we start creating a new application that we’re going to call GraphQL_Sample_1

Now, we have an empty application. Until this point it wasn’t hard, right? Ok, let’s see how it goes. Now we are going to create a new flow, and we can choose between three options:

Empty flow
Swagger specification
GraphQL Schema

So we choose the option from GraphQL Schema and we upload the file and it generates a skeleton of all the flows needed to support this specification. A new flow is going to be generated for each of the queries and each of the mutations we’ve defined, as we have two (2) queries and three (3) mutations, so five (5) flows in total as you can see in the picture below:

As you can see flows have been generated following the following naming convention:

<TYPE>_<name>

Where <TYPE> can be either Mutation or Query and <name> is the name this component has in the GraphQL Schema.

Now, everything is done regarding GraphQL part, and we only need to provide content to each of the flows. In this sample, I’m going to rely on a PostgreSQL database to store all the info regarding users and companies, but the content is going to be very straight forward.

Query_currentUser: This flow is going to ask for the customer data to the PostgreSQL to return its data and the company he belongs to. In case he doesn’t belong to anyone, we gather only the data user and in case it is not present to return an empty object.

Query_company: This flow is going to ask for the company data to the PostgreSQL to return and in case it is not present to return an empty object.

Mutation_registerUser: This flow is going to insert a user in the database and in case its mail already exists is going to return the existing data to the consumer.

Mutation_registerCompany: This flow is going to insert a company in the database and in case its name already exists is going to return the existing data to the consumer.

Mutation_asignUser: This flow is going to assign a user into the company to do that is going to return the user data based on its email and same thing with the company and update the PostgreSQL activities based on that situation.

Ok, now we have our app already built, let’s see how we can test it and play with the GraphQL API we’ve built. So…its show-time!!!!!

First, we’re going to build the app. As you probably know you can choose for different kinds of builts: docker image or OS-based package. In my case, I’m going to generate a Windows build to ease all the process, but you can choose whatever feels good to you.

To do that we go to the menu app and click in the Build and choose the Windows option:

And once the built has done we’re going to have a new EXE file in our Download folder. Yes, that easy! And now, how to launch it? Even easier… just execute the EXE file and … it’s done!!

As you can see in the picture above we’re listening requests in port 7879 in the /graphql path. So, let’s open a Postman client and start sending requests to it!!

And we’re going to start with the queries and to be able to return data I’ve inserted in the database a sample record with test@test.com email so, If now I try to recover it, I can do this:

{
 “query” : “query($email: String!) { currentUser( email: $email) { id firstName email } }”,
 “variables” : {“email” : “test@test.com” }
}

Only a few highlights about our GraphQL query:

We can choose the amount of attributes the query is going to recover, and thats the last part of the query, so If I change it, let’s see what happens:

{
 “query” : “query($email: String!) { currentUser( email: $email) { id } }”,
 “variables” : {“email” : “test@test.com” }
}

And now, we’re getting only this output:

Installing Flogo Extensions

2022-05-092019-05-27 by Alexandre Vazquez

In previous posts, we’ve talked about capabilities of Flogo and how to build our first Flogo application, so at this moment if you’ve read both of them you have a clear knowledge about what Flogo provides and how easy is to create applications in Flogo.

But in those capabilities, we’ve spoken about that one of the strengths from Flogo is how easy is to extend the default capabilities Flogo provides. Flogo Extensions allows increasing the integration capabilities from the product as well as the compute capabilities and they’re built using Go. You can create a different kind of extensions:

Triggers: Mechanism to activate a Flogo flow (usually known as Starters)
Activities/Actions: Implementation logic that you can use inside your Flogo flows.

There are different kinds of extensions depending on how they’re provided and the scope they have.

TIBCO Flogo Enterprise Connectors: These are the connectors provided directly from TIBCO Software for the customers that are using TIBCO Flogo Enterprise. They are release using TIBCO eDelivery like all the other products and components from TIBCO.
Flogo Open Source Extensions: These are the extensions developed by the Community and that is usually stored in GitHub repositories or any other control version system that is publicly available.
TIBCO Flogo Enterprise Custom Extensions: These are the equivalent extensions to Flogo OpenSource Extensions but build to be used in TIBCO Flogo Enterprise or TIBCO Cloud Integration (iPaaS from TIBCO) and that follows the requirements defined by Flogo Enterprise Documentation and provides a little more configuration options about how this is displayed in UI.

Installation using TIBCO Web UI

We’re going to cover in this article how to work with all of them in our environment and you’re going to see that the procedure is pretty much the same but the main difference is how to get the deployable object.

We need to install some extension and for our case, we’re going to use both kinds of extensions possible: A connector provided by TIBCO for connecting to GitHub and an open source activity build for the community to manage the File operations.

First, we’re going to start with the GitHub connector and we’re going to use the Flogo Connector for GitHub, that is going to be downloaded through TIBCO eDelivery as you did with Flogo Enterprise. Once you have the ZIP file, you need to add it to your installation and to do that, we’re going to go to the Extensions page

And we’re going to click in Upload and provide the ZIP file we’ve downloaded with the GitHub connector

We click on the button “Upload and compile” and wait until the compilation process finishes and after that, we should notice that we have an additional trigger available as you can see in the picture below:

So, we already have our GitHub trigger, but we need our File activities and now we’re going to do the same exercise but with a different connector. In this case, we’re going to use an open source activity that is hosted in the Leon Stigter GitHub repository. And we’re going to download the full flogo-components repository and upload that ZIP file to the Extensions page as we did before:

We’re going to extract the full repository and go to the path activity and generate a zip file from the folder named “writetofile” and that is the ZIP file that we’re going to upload it to our Extension page:

Repository structure is pretty much the same for all this kind of open source repositories, they usually have the name flogo-components and inside they have two main folders:

activity: Folder that is grouping all different activities that are available in this repository.
trigger: Folder that is grouping all different triggers that are available in this repository.

Each of these folders is going to have a folder for each of the activities and triggers that are being implemented in this repository like you can see in the picture below:

And each of them is to have the same structure:

activity.json: That is going to describe the model of the activity (name, description, author, input settings, output settings)
activity.go: Holds all the programming code in Go to build the capability the activity exposes.
activity_test.go : Holds all tests the activity has to be ready to be used by other developers and users.

NOTE: Extensions for TIBCO Flogo Enterprise have an additional file named activity.ts that is a TypeScript file that defines UI validations that it should be done for the activity.

And once we have the file we can upload it the same way we did with the previous extension.

Using CLI to Install

Also, If we’re using the Flogo CLI we can still install it using directly the URL to the activity folder without needed to provide the zip file. To do that we need to enable Installer Manager using the following command:

<FLOGO_HOME>/tools/installmgr.bat

And that is going to build a Docker image that represents a CLI tool with the following commands:

Install: Install Flogo Enterprise, Flogo Connectors, Services, etc in the current installation directory.
Uninstall: Uninstall Flogo Enterprise, Flogo Connectors, Services from the current installation directory.

And this process can be used with an official Connector as well as an OSS Extension

Kubernetes Probes for a TIBCO BusinessWorks Container Edition Application

2022-05-072019-05-20 by Alexandre Vazquez

Introduction

Probes are how we’re able to say to Kubernetes that everything inside the pod is working as expected. Kubernetes has no way to know what’s happening inside at the fine-grained and has no way to know for each container if it is healthy or not, that’s why they need help from the container itself.

Imagine that you’re Kubernetes controller and you have like eight different pods , one with Java batch application, another with some Redis instance, other with nodejs application, other with a Flogo microservice (Note: Haven’t you heard about Flogo yet? Take some minutes to know about one of the next new things you can use now to build your cloud-native applications) , another with a Oracle database, other with some jetty web server and finally another with a BusinessWorks Container Edition application. How can you tell that every single component is working fine?

First, you can think that you can do it with the entrypoint component of your Dockerfile as you only specify one command to run inside each container, so check if that process is running, and that means that everything is healthy? Ok… fair enough…

But, is this true always? A running process at the OS/container level means that everything is working fine? Let’s think about the Oracle database for a minute, imagine that you have an issue with the shared memory and it keeps in an initializing status forever, K8S is going to check the command, it is going to find that is running and says to the whole cluster: Ok! Don’t worry! Database is working perfectly, go ahead and send your queries to it!!

This could happen with similar components like a web server or even with an application itself, but it is too common when you have servers that can handle deployments on it, like BusinessWorks Container Edition itself. And that’ why this is very important for us as developers and even more important for us as administrators. So, let’s start!

The first thing we’re going to do is to build a BusinessWorks Container Edition Application, as this is not the main purpose of this article, we’re going to use the same ones I’ve created for the BusinessWorks Container Edition — Istio Integration that you could find here.

So, this is a quite simple application that exposes a SOAP Web Service. All applications in BusinessWorks Container Edition (as well as in BusinessWorks Enterprise Edition) has its own status, so you can ask them if they’re Running or not, that something the BusinessWorks Container internal “engine” (NOTE: We’re going to use the word engine to simplify when we’re talking about the internals of BWCE. In detail, the component that knows the status of the application is the internal AppNode the container starts, but let’s keep it simple for now)

Kubernetes Probes

In Kubernetes, exists the “probe” concept to perform health check to your container. This is performed by configuring liveness probes or readiness probes.

Liveness probe: Kubernetes uses liveness probes to know when to restart a Container. For example, liveness probes could catch a deadlock, where an application is running, but unable to make progress.
Readiness probe: Kubernetes uses readiness probes to know when a Container is ready to start accepting traffic. A Pod is considered ready when all of its Containers are ready. One use of this signal is to control which Pods are used as backends for Services. When a Pod is not ready, it is removed from Service load balance

Even when there are two types of probes for BusinessWorks Container Edition both are handling the same way, the idea is the following one: As long as the application is Running, you can start sending traffic and when it is not running we need to restart the container, so that makes it simpler for us.

Implementing Probes

Each BusinessWorks Container Edition application that is started has an out of the box way to know if it is healthy or not. This is done by a special endpoint published by the engine itself:

http://localhost:7777/_ping/

So, if we have a normal BusinessWorks Container Edition application deployed on our Kubernetes cluster as we had for the Istio integration we have logs similar to these ones:

As you can see logs says that the application is started. So, as we can’t launch a curl request from the inside the container (as we haven’t exposed the port 7777 to the outside yet and curl is not installed in the base image), the first thing we’re going to do is to expose it to the rest of the cluster.

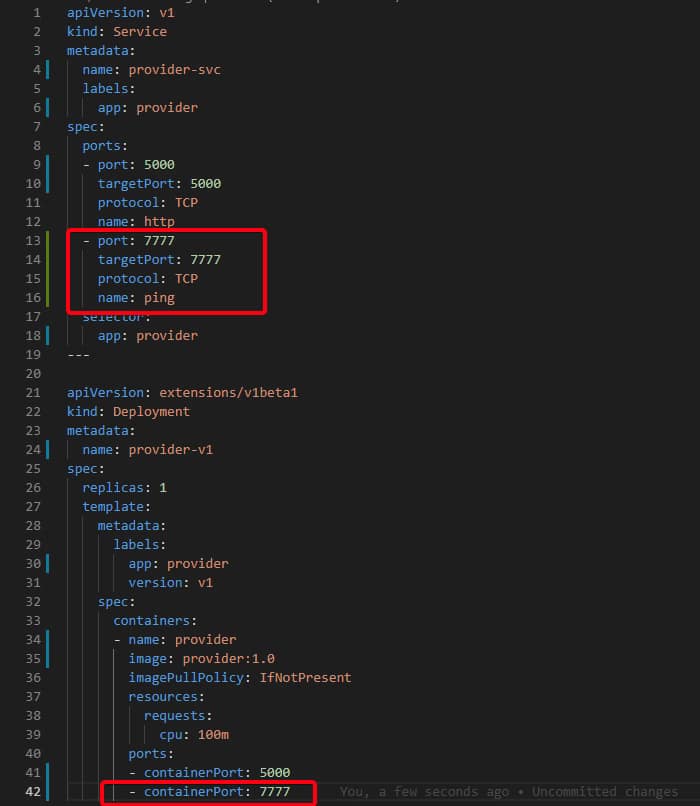

To do that we change our Deployment.yml file that we have used to this one:

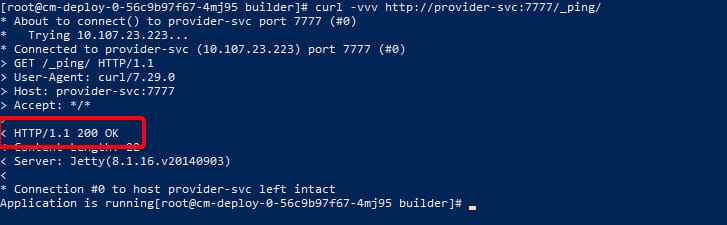

Now, we can go to any container in the cluster that has “curl” installed or any other way to launch a request like this one with the HTTP 200 code and the message “Application is running”.

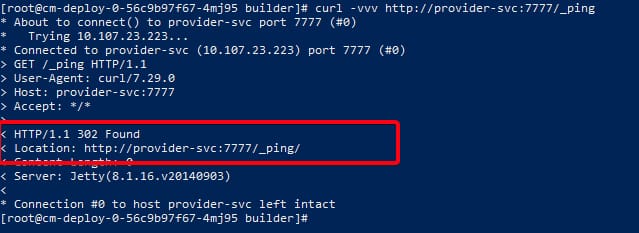

NOTE: If you forget the last / and try to invoke _ping instead of _ping/ you’re going to get an HTTP 302 Found code with the final location as you can see here:

Ok, let’s see what happens if now we stop the application. To do that we’re going to go inside the container and use the OSGi console.

To do that once you’re inside the container you execute the following command:

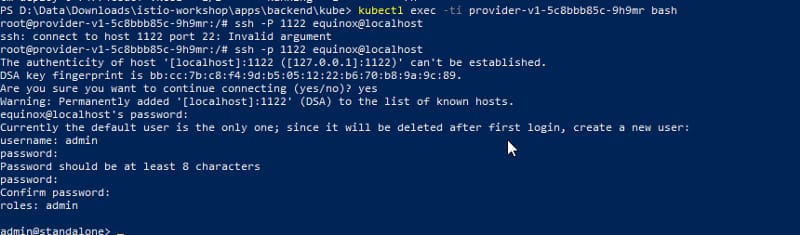

ssh -p 1122 equinox@localhost

It is going to ask for credentials and use the default password ‘equinox’. After that is going to give you the chance to create a new user and you can use whatever credentials work for you. In my example, I’m going to use admin / adminadmin (NOTE: Minimum length for a password is eight (8) characters.

And now, we’re in. And this allows us the option to execute several commands, as this is not the main topic for today I’m going to skip all the explanation but you can take a look at this link with all the info about this console.

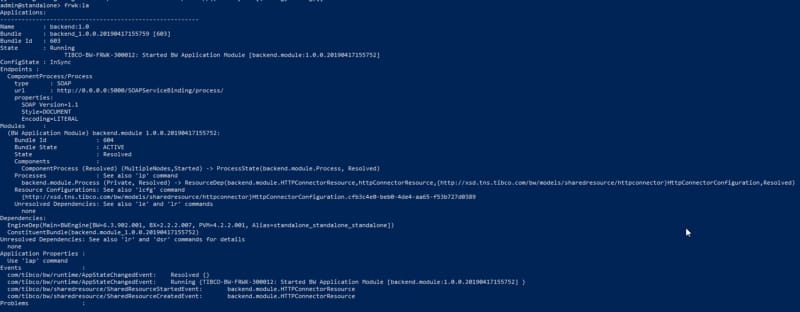

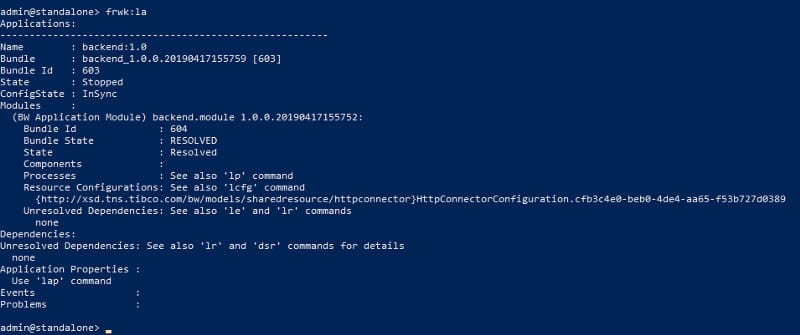

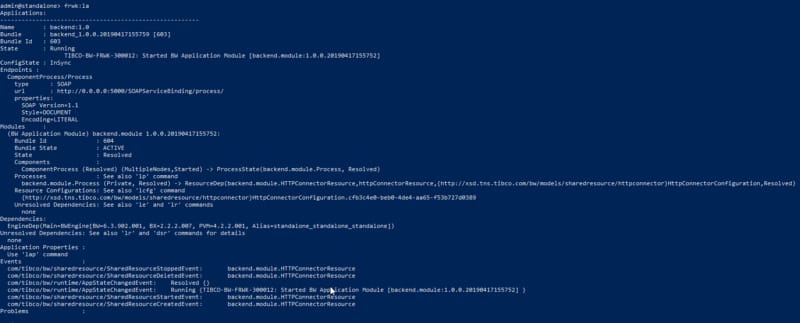

If we execute frwk:la is going to show the applications deployed, in our case the only one, as it should be in BusinessWorks Container Edition application:

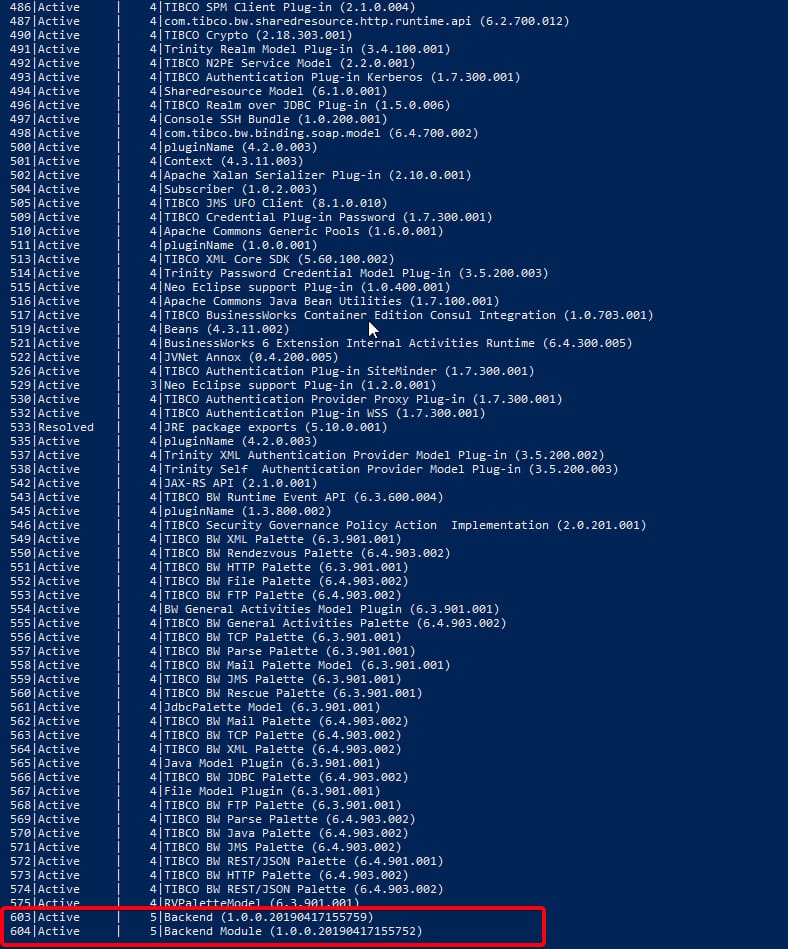

To stop it, we are going to execute the following command to list all the OSGi bundle we have at the moment running in the system:

frwk:lb

Now, we find the bundles that belong to our application (at least two bundles (1 per BW Module and another for the Application)

And now we can stop it using felix:stop <ID>, so in my case, I need to execute the following commands:

stop “603”

stop “604”

And now the application is stopped

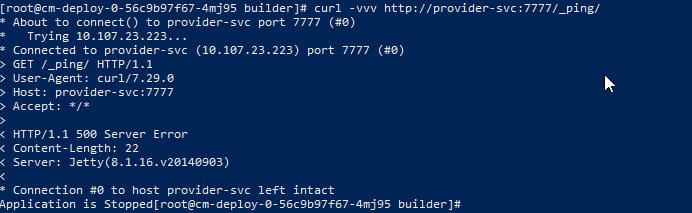

So, if now we try to launch the same curl command as we executed before, we’re getting the following output:

As you can see an HTTP 500 Error which means something is not fine. If now we try to start again the application using the start bundle command (equivalent to the stop bundle command that we used before) for both bundles of the application, you are going to see that the application says is running again:

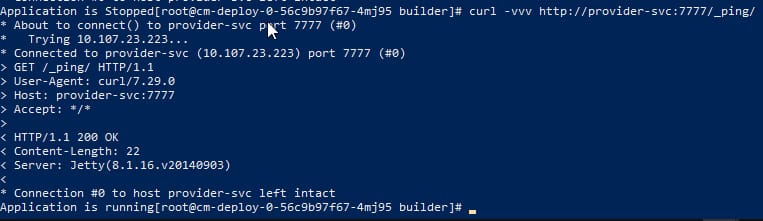

And the command has the HTTP 200 output as it should have and the message “Application us running”

So, now, after knowing how the _ping/ endpoint works we only need to add it to our deployment.yml file from Kubernetes. So we modified again our deployment file to be something like this:

NOTE: It’s quite important the presence of initialDelaySeconds parameter to make sure the application has the option to start before start executing the probe. In case you don’t put this value you can get a Reboot Loop in your container.

NOTE: Example shows port 7777 as an exported port but this is only needed for the steps we’ve done before and you will not be needed in a real production environment.

So now we deploy again the YML file and once we get the application running we’re going to try the same approach, but now as we have the probes defined as soon as I stop the application containers has going to be restarted. Let’s see!

As you can see in the picture above after the application is Stopped the container has been restarted and because of that, we’ve got expelled from inside the container.

So, that’s all, I hope that helps you to set up your probes and in case you need more details, please take a look at the Kubernetes documentation about httpGet probes to see all the configuration and option that you can apply to them.

Building your First Flogo Application

2022-10-052019-05-13 by Alexandre Vazquez

In the previous post, we introduce Flogo technology like one of the things in the cloud-native development industry and now we’re going to build our first Flogo Application and try to cover all the options that we describe in the previous post.

NOTE .- If you’re new to Flogo and you didn’t read the previous post about Flogo capabilities please take a few minutes to read it before continuing.

TIBCO Flogo Introduction

Flogo is the next new thing in the developing applications in a cloud-native way. Since its foundation has been designed to cover all the new challenges that we need to face when dealing with new cloud-native development. So, please, if you or your enterprise is starting its movement to the cloud it’s the moment to […]

For this moment forward, I’m going to use Flogo Enterprise, that is the open-core product based on open source Project Flogo, and the current version is 2.5.0 as you can see here: https://docs.tibco.com/products/tibco-flogo-enterprise

First of all, I’d like to introduce the scenario, this is going to be a simple scenario that shows in the most simple way the concepts inside a Flogo application, so we’re going to create a Hello world application that is going to be exposed using HTTP/JSON protocol to communicate. So, the scenario is going to be like the picture shown below:

So, the first thing we need to do is to launch the Flogo Web UI, so we go to our folder where we have our TIBCO Flogo Enterprise installation and we run the command from the bin directory

./run-studio.bat

Now, we can go to the location http://localhost:8090 and we see something similar to this:

Now, we are going to create our first application so we click on the “Create” button and we’ll provide an application name, in our case we are going to call it “HelloWorldREST”

Now, we’ll enter in the main page for an application that is the one shown below:

It’s important to notice that Flogo Services are based on flows, so you can create one or more flows that are going to orchestrate the logic that you need to implement. So, the first thing we need to do is to create one flow, and we’re going to do it clicking in the button “Create a flow” and provide a name for the flow, in our case as this is going to be a simple application we’re going to use “main” as name of the flow we’re going to create:

And you’re going to be prompted to the empty canvas of your new “main” flow:

There are two important concepts in a Flogo flow:

Trigger: This is how this flow is going to be started, there are several ways to start a Flogo flow, for example with an HTTP Request or a Timer, or an AWS Lambda Event Source, a Kafka Topic or MQTT message and so on. You can have one or more triggers in your application and you should have one if this is a principal flow (instead of a subflow that we’ll discuss in a different post). Triggers are shown in the left of the canvas like little square icons as you can see in the picture below:

Activities: Are the ones that are going to decide which logic is going to be executed. Each activity has an action to be performed that could be an internal one like a Log Trace or an external one like invoking a REST Service or something similar, and we’re going to use the rest of the canvas to build the logic flow.

So, the first thing we need to do is to configure the Trigger of this flow, and to do that we click on the plus icon in the Triggers are and select the HTTP REST trigger:

And we’re going to configure it like the image shown below:

Method: GET
Resource Path: /hello/{name}

And we click Continue and in the next window we select “Copy Schema”, to copy the Trigger Output Schema to Flow Input Schema. Now, we’ve added the trigger but we need to configure how the data is going to be transferred into the flow activities. To do this, we click in the “Trigger configuration” because we need to map data from the trigger to the flow input, so in case we have more than one triggers we can have different mappings from each of the triggers to the flow input.

Now, we go to the Output tab and we select “name” under the pathParams object and we map it to the same attribute (name under pathParams from the $trigger object).

So now this name is going to be transferred to the flow input and we can use it in the flow logic. Now it’s time to build the flow logic. In this case is going to be so easy, as we already have a return activity that is added by default, we only going to add a Log activity to print the names that we’re receiving.

To do that we click on the plus button in the canvas and select inside the General Section the activity Log Message:

And we need to configure it like it shows the image below:

So, we click in the Input section and in this case the activity by default only has a parameter named “message” that is the log message that is going to be printed, and we create a structure based on the concatenation of a constant value “Receives request with name: “ and the name that was previously mapped in the trigger configuration.

As you can see you have always visible all the functions you’ve available grouped in different categories and also all the pipeline data that you can use that is being generated by the execution of all the activities inside the flow

So, the last thing we need to do is to configure the return activity. To do that we click in the return activity and map the attributes code (to constant 200) and message to the structure shown below:

And that’s all. We’re all set. So now we can start testing the simple service we’ve created. To do that Flogo Studio provides a Test Engine able to check that the logic you’ve to build is working fine. This Test engine is going to test the flow logic, not the triggers so it starts from the first activity and doesn’t include the interaction with the trigger.

To do that you only need to click in the Start Testing button and provides input values to your flow.

In our case, as most of the logic is based on the trigger makes no sense to do that step, but we’ll come back to the Test Engine in upcoming posts about Flogo Development. So, instead of doing that we’re going to build the service directly. To do that we exit the flow canvas and come back to the application main page and we’re going to click on the Build button and select the architecture that you’ll be using to test your application, in my case this will be windows

And that’s going to generate an executable file, in my case EXE application that has my logic that we only need to execute it to run our service

So, now, we launch it and we’ll get an output similar to this:

To test the application we’re going to open a new tab in our browser and type the following URL:

http://localhost:9999/hello/bob

And we get a response like this one:

TIBCO Flogo Introduction

2022-05-092019-05-06 by Alexandre Vazquez

So, please, if you or your enterprise is starting its movement to the cloud it’s the moment to take a look at what Flogo offer. Flogo is an Open Source Application Development Framework based on the principles that are discussed in the upcoming sessions

Minimal memory footprint

In the rise of the IoT reality when we’ll need that all devices in our environment have some compute as well as integration capabilities, and also when the option to optimize costs in your cloud infrastructure you need to do an optimal use of the resources you’re paying for. A decrease of 10–20% of your service memory footprint can do that you can provide the same performance with smaller machine types with the savings that it generates for the whole company.

Flogo is based on Go programming language and that makes that the binary executable that it generates only have the exact components you need to run your logic and nothing else. So, you don’t need an intermediate layer with a virtual machine, like a Javascript V8 engine to run your node application or a JVM to run your Spring Boot services and so on. No, you only will have in your executable the exact libraries that you need and that makes awesome improvements of the memory footprint that you could have in your flogo developments.

Ok, but this is too generic, so let me make it more real so you can get the exact meaning what I’m talking about:

Pretty amazing, right? But you could think… if you can keep all the capabilities and integration that you need to be able to use it in the real job. Ok, let’s wait until we discuss all topics and you could have an overall opinion about it.

Zero-code and All-code flavors

In TIBCO, zero-code has been our flagship for decades to make possible that non-technical people to build optimal services and integrates technologies without the need to handle all the details of this integration. If you have aware of our integration products like TIBCO BusinessWorks or BusinessWorks Container Edition graphical designer has been the main way all customer logic is implemented in an easy, more resilient and more maintainable way.

This still exists in our Flogo technology with the Web Studio Flogo provides, you will have an easy way to build your flows as you can see here:

So, you will be able to continue to use our zero-code approach with all the tweaks, options and palettes needed to have to do all your logic in a more maintainable way. But today this is not enough, so even when you can still do it this way that is the best option for most of the customers, you can still relying on your coders and developers to build your services, because Flogo also allows building your services in an All code way with Go-lang development. So, you will have the option to open the IDE of your choice and start coding Flogo activities using go-lang, as you can see in the picture below:

Ready for serverless

You can run your applications in a lot of different ways, you can do it on premises real close to the bare metal, generating compiled applications for all OS: Windows, MacOS, and Linux (also for ARM architecture). Or you can run it in a container version generating a Docker image with your services so you can use it with any production-ready PaaS system you have or you’re planning to have in your enterprise (Kubernetes, Openshift, Swarm, Mesos…) But, you can still run it AWS Lambda if you want to go to a full serverless approach. So, this is a true design one, run everywhere approach but adapted to today needs.

Imagine that, you can have the same service running on a Raspberry Pi, a Windows Server 2018 and also an AWS Lambda function without changing a line of code or activity in your canvas. How cool this is?

But that’s not all, what happens if you don’t want to manage all the infrastructure for your cloud and neither want to handle all the lambda stuff with Amazon? Ok, you still have another option and is to use TIBCO Cloud Integration that is going to handle everything from you and you only need to upload your code in an easy way

You also have different flavors of Flogo, you can keep it in the Open source option or you can upgrade to the Enterprise option, that is going to provide you access to TIBCO Support to raises cases to help you with your developments and also first access to some new features that are added to the platform on a regular basis.

Open Source Integration

Even when all the options that we have at the vendor-locking approach with solutions like Logic Apps for Azure or even the AWS Workflows and so on, something that defines the new technologies that are leading the way in the cloud-native movement are open source technologies. All Flogo supports most of them in a smooth way at different levels:

Integration for your flows

If you’re familiar with TIBCO BusinessWorks, you know our concept of “palette”, but for the ones that you’re not familiar to our zero-code developer approach let me explain it a little bit better. We usually have one activity for each of the actions that you could do in your flow. That cloud is from invoking a REST service or writing a log trace. Each of the activity has its own icon so you can easily identify when you see it in the flow or when you want to select the activity that wants to add to the canvas

And the group of activities that are related to the same scope like for example integrate with Lambda, generates what is a called a Palette that is only a set of activities.

So, we provide a lot of palettes that are ready to use, the number of the ones that are available to you that depends on the flavor of Flogo that you’re using, that cloud be the Flogo Open Source, Flogo Enterprise and Flogo running in TCI, but you can find at least connection to the following services (this is not a complete list only to name a few)

All also a lot of services to manage all your AWS resources, like the ones shown in the table below:

As you can see that’s a big amount of integration options that you have to be productive since the beginning but, what happens if you need to connect to another system? Ok, first we need to search if somebody has done this, and we can use GitHub to search for a lot of new palettes and you can see a lot of different repositories with more activities that you can install in your own environment. Only to name a few:

Flogo-contrib: https://github.com/TIBCOSoftware/flogo-contrib
Retgits flogo-components: https://github.com/retgits/flogo-components
Jvanderl flogo-components: https://github.com/jvanderl/flogo-components
Mmussett flogo-components: https://github.com/mmussett/flogo-components
Ayh20 flogo-components: https://github.com/ayh20/flogo-components

Management APIs

Also, Flogo exposes some APIs to be able to integrate with third-party tools like for example the following ones:

Integration with Configuration Management Systems like Consul, Zookeeper or Spring Cloud Config using the info provided here: https://github.com/TIBCOSoftware/flogo/wiki/Application-Properties
Application Monitoring Flogo Enterprise now provides support for Prometheus, an open source project under the Cloud Native Computing Foundation (CNCF). This gives you the ability to configure Prometheus for pulling and storing Flogo application metrics, use features of Prometheus for monitoring as well as alerting, and also use tools like Grafana for visualization. Also, these metrics API can be used to integrate with other third-party tools.

Integrating Istio with BWCE Applications

2022-05-072019-04-22 by Alexandre Vazquez

Introduction

Services Mesh is one the “greatest new thing” in our PaaS environments. No matter if you’re working with K8S, Docker Swarm, pure-cloud with EKS or AWS, you’ve heard and probably tried to know how can be used this new thing that has so many advantages because it provides a lot of options in handling communication between components without impacting the logic of the components. And if you’ve heard from Service Mesh, you’ve heard from Istio as well, because this is the “flagship option” at the moment, even when other options like Linkerd or AWS App Mesh are also a great option, Istio is the most used Service Mesh at the moment.

You probably have seen some examples about how to integrate Istio with your open source based developments, but what happens if you have a lot of BWCE or BusinessWorks applications… can you use all this power? Or are you going to be banned for this new world?

Do not panic! This article is going to show you how easy you can use Istio with your BWCE application inside a K8S cluster. So, let the match…. BEGIN!

Scenario

The scenario that we’re going to test is quite simple. It’s a simple consumer provider approach. We’re going to use a simple Web Service SOAP/HTTP exposed by a backend to show that this can work not only with fancy REST API but even with any HTTP traffic that we could generate at the BWCE Application level.

So, we are going to invoke a service that is going to request a response from its provider and give us the response. That’s pretty easy to set up using pure BWCE without anything else.

All code related to this example is available for you in the following GitHub repo: Go get the code!

Steps

Step 1 Install Istio inside your Kubernetes Cluster

In my case I’m using Kubernetes cluster inside my Docker Desktop installation so you can do the same or use your real Kubernetes cluster, that’s up to you. The first step anyway is to install istio. And to do that, nothing better than following the steps given at isito-workshop that you can find here: https://polarsquad.github.io/istio-workshop/install-istio/ (UPDATE: No longer available)

Once you’ve finished we’re going to get the following scenario in our kubernetes cluster, so please, check that the result is the same with the following commands:

kubectl get pods -n istio-system

You should see that all pods are Running as you can see in the picture below:

kubectl -n istio-system get deployment -listio=sidecar-injector

You should see that there is one instance (CURRENT = 1) available.

kubectl get namespace -L istio-injection

You should see that ISTIO-INJECTION is enabled for the default namespace as the image shown below:

Step 2 Build BWCE Applications

Now, as we have all the infrastructure needed at the Istio level we can start building our application and to do that we don’t have to do anything different in our BWCE application. Eventually, they’re going to be two application that talks using HTTP as protocol, so nothing specific.

This is something important because when we usually talk about Service Mesh and Istio with customers, the same question always arises: Is Istio supported in BWCE? Can we use Istio as a protocol to communicate our BWCE application? So, they expect that it should exist some palette or some custom plugin they should install to support Istio. But none of that is needed at the application level. And that applies not only to BWCE but also to any other technology like Flogo or even open source technologies because at the end Istio (and Envoy is the other part needed in this technology that we usually avoid talking about when we talk about Istio) works in a Proxy mode using one of the most usual patterns in containers that is the “sidecar pattern”.

So, the technology that is exposing and implementing or consuming the service knows nothing about all this “magic” that is being executed in the middle of this communication process.

We’re going to define the following properties as environment variables like we’ll do in case we’re not using Istio:

Provider application:

PROVIDER_PORT → Port where the provider is going to listen for incoming requests.

Consumer application:

PROVIDER_PORT → Port where the provider host will be listening to.
PROVIDER_HOST → Host or FQDN (aka K8S service name) where provider service will be exposed.
CONSUMER_PORT → Port where the consumer service is going to listen for incoming requests.

So, as you can see if you check that the code of the BWCE application we don’t need to do anything special to support Istio in our BWCE applications.

NOTE: There is only an important topic that is not related to the Istio integration but how BWCE populates the property BW.CLOUD.HOST that is never translated to loopback interface or even 0.0.0.0. So it’s better that you change that variable for a custom one or to use localhost or 0.0.0.0 to listen in the loopback interface because is where the Istio proxy is going to send the requests.

After that we’re going to create our Dockerfiles for these services without anything, in particular, something similar to what you can see here:

NOTE: As a prerequisite, we’re using BWCE Base Docker Image named as bwce_base.2.4.3 that corresponds to version 2.4.3 of BusinessWorks Container Edition.

And now we build our docker images in our repository as you can see in the following picture:

Step 3: Deploy the BWCE Applications

Now, when all the images are being created we need to generate the artifacts needed to deploy these applications in our Cluster. Once again in this case nothing special neither in our YAML file, as you can see in the picture below we’re going to define a K8S service and a K8S deployment based on the imaged we’ve created in the previous step:

A similar thing happens with consumer deployment as well as you can see in the image below:

And we can deploy them in our K8S cluster with the following commands:

kubectl apply -f kube/provider.yaml

kubectl apply -f kube/consumer.yaml

Now, you should see the following components deployed. Only to fulfill all the components needed in our structure we’re going to create an ingress to make possible to execute requests from outside the cluster to those components and to do that we’re going to use the following yaml file:

kubectl apply -f kube/ingress.yaml

And now, after doing that, we’re going to invoke the service inside our SOAPUI project and we should get the following response:

Step 4 — Recap what we’ve just done

Ok, it’s working and you think… mmmm I can get this working without Istio and I don’t know if Istio is still doing anything or not…

Ok, you’re right, this could not be so great as you were expected, but, trust me, we’re just going step by step… Let’s see what’s really happening instead of a simple request from outside the cluster to the consumer service and that request being forwarded to the backend, what’s happening is a little bit more complex. Let’s take a look at the image below:

Incoming request from the outside is being handled by an Ingress Envoy Controller that is going to execute all rules defined to choose which service should handle the request, in our case the only consumer-v1 component is going to do it, and the same thing happens in the communication between consumer and provider.

So, we’re getting some interceptors in the middle that COULD apply the logic that is going to help us to route traffic between our components with the deployment of rules at runtime level without changing the application, and that is the MAGIC.

Step 5 — Implement Canary Release

Ok, now let’s apply some of this magic to our case. One of the most usual patterns that we usually apply when we’re rolling out an update in some of our services is the canary approach. Only to do a quick explanation or what this is:

Canary release is a technique to reduce the risk of introducing a new software version in production by slowly rolling out the change to a small subset of users before rolling it out to the entire infrastructure and making it available to everybody.

If you want to read more about this you can take a look at the full article in Martin Fowler’s blog.

So, now we’re going to generate a small change in our provider application, that is going to change the response to be sure that we’re targeting version two, as you can see in the image below:

Now, we are going to build this application and generate the new image called provider:v2.

But before we’re going to deploy it using the YAML file called provider-v2.yaml we’re going to set a rule in our Istio Service Mesh that all traffic should be targeted to v1 even when others are applied. To do that we’re going to deploy the file called default.yaml that has the following content:

So, in this case, what we’re saying to Istio is that even if there are other components registered to the service, it should reply always the v1, so we can now deploy the v2 without any issue because it is not going to reply to any traffic until we decide to do so. So, now we can deploy the v2 with the following command:

kubectl apply -f provider-v2.yaml

And even when we execute the SOAPUI request we’re still getting a v1 reply even if we check in the K8S service configuration that the v2 is still bounded to that service.

Ok, now we’re going to start doing the release and we’re going to start with 10% to the new version and 90% of the requests to the old one, and to do that we’re going to deploy the rule canary.yaml using the following command:

kubectl apply -f canary.yaml

Where canary.yaml has the content shown below:

And now when we try enough times we’re going to get that most of the requests (90% approx) is going to reply v1 and only for 10% is going to reply from my new version:

Now, we can monitor how v2 is performing without affecting all customers and if everything goes as expected we can continue increasing that percentage until all customers are being replied by v2.

Starting with TIBCO(R) Messaging — Apache Kafka Distribution (I) Overview and Installation

2022-09-152018-09-17 by Alexandre Vazquez

If you are familiar with Enterprise Integration world for sure you know Kafka, one of the most famous projects from Apache Foundation for the last years, and also if you are in Integration World you know TIBCO Software, and some of our flagship products like TIBCO ActiveMatrix BusinessWorks for integration, TIBCO Cloud Integration as our iPaaS, TIBCO AMX BPM, TIBCO BusinessEvents.. and I could continue that list over and over.. 🙂

But, probably you don’t know about TIBCO(R) Messaging — Apache Kafka Distribution. This is one of the parts of our global messaging solution named TIBCO Messaging and it is composed of several components:

TIBCO Enterprise Message Service (aka TIBCO EMS) is our JMS 2.0 compliant server, one of our messaging standards over a decade.
TIBCO FTL is our cloud-ready messaging solution, using a direct pub-sub no centralized and so performant communication system.
TIBCO(R) Messaging — Apache Kafka Distribution is designed for efficient data distribution and stream processing with the ability to bridge Kafka applications to other TIBCO Messaging applications powered by TIBCO FTL(R), TIBCO eFTL(TM) or TIBCO Enterprise Message Service(TM).
TIBCO(R) Messaging — Eclipse Mosquitto Distribution includes a lightweight MQTT broker and C library for MQTT client in the Core package and a component for bridging MQTT clients to TIBCO FTL applications in the Bridge package.

I’d like to do that post fully-technical but I’m going to let a piece of info about product version that you could find interesting, because we have a Community Edition of this whole Messaging solution and you could use yourself.

TIBCO Messaging software is available in a community edition and an enterprise edition.

TIBCO Messaging — Community Edition is ideal for getting started with TIBCO Messaging, for implementing application projects (including proof of concept efforts) for testing, and for deploying applications in a production environment. Although the community license limits the number of production processes, you can easily upgrade to the enterprise edition as your use of TIBCO Messaging expands. The community edition is available free of charge, with the following limitations and exclusions:

● Users may run up to 100 application instances or 1000 web/mobile instances in a production environment.

● Users do not have access to TIBCO Support, but you can use TIBCO Community as a resource (http://community.tibco.com).

TIBCO Messaging — Enterprise Edition is ideal for all application development projects, and for deploying and managing applications in an enterprise production environment. It includes all features presented in this documentation set, as well as access to TIBCO Support.

You can read that info here, but, please, take your time too to read our official announcement that you could find here.

So, this is going to be the first of a few posts about how to integration Kafka in the usual TIBCO ecosystem and different technologies. This series is going to assume that you already know about Apache Kafka, and if you don’t, please take a look at the following reference before moving forward:

Apache Kafka Official Documentation: https://kafka.apache.org/documentation/
Kafka Architecture: https://dzone.com/articles/kafka-architecture

So, now we are going to start installing this distribution in our machine, in my case I’m going to use UNIX based target, but you have this software available for MacOS X, Windows or whatever OS you’re using.

Installation process is quite simple because distribution is based on the most usual Linux distributions so it provides you a deb package, a rpm package or even a tar package so you can use whatever you need for your current distribution. In my case, as I’m using CentOS I’ve moved with the rpm package and everything goes so smooth.

And after that I have installed in my /opt/tibco folder a pretty much usual Kafka distribution, so to start it we need to start the zookeeper server first and then the kafka server itself. And that’s it. Everything is running!!

Mmmm.. But, How can I be sure of it? Kafka it doesn’t provide a GUI to monitor or monitor it, but there are a bunch of tools out there to do that. In my case I’m going to use Kafka Tool because it doesn’t need another components like Kafka REST and so on, but keep in mind there are other options with “prettier” UI but this is going to make the job just perfect.

So, after installing Kafka Tool, we only provide the data of where zookeeper is listening (if you keep everything by default, is going to be listening at 2181) and the Kafka version we’re using (in this case is 1.1), and now you can be sure everything is up & running and working as expected:

So, now we are going to do only a quick test using our flagship integration product TIBCO AMX BusinessWorks which has a Kafka plug-in, so you can communicate with this new server we just launched. This is going to be only a Hello World with the following structure:

Process A is going to sent a Hello! to Process B.
Process B is going to receive that message and print it in a log.

The process are going to be developed just like these:

And that’s the output we get after executing both processes:

And we can see that the topic sample we used to do the comunication and the default partition has been created by default using Kafka Tool:

As you can see, so easy and straightforward to have it all configured in a default way. After that, we continue going deep on this new component in the TIBCO world!
